Technical Specifications

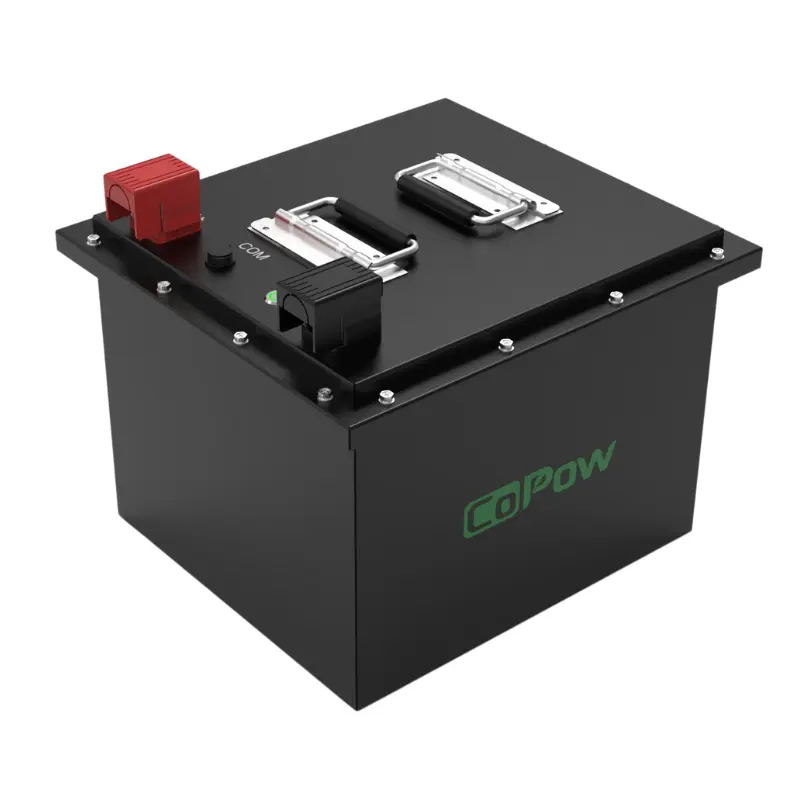

24v 105Ah floor machine batteries Compared with traditional lead-acid batteries, they have a significant range, which can support the sweeper in cleaning work for longer.COPOW 24v 105Ah floor machine batteries have reasonable charging and discharging management, no need for frequent charging, and the lithium battery has a longer service life. COPOW 24v 105Ah floor machine batteries have reasonable charge/discharge management, no need for frequent charging, and the lithium battery has a longer service life, which avoids the trouble and additional cost caused by frequent battery replacements.COPOW floor machine batteries are built-in with an active equalization module, which automatically calibrates the voltage and current of each battery during each charging and discharging process, to ensure that there is no pressure difference, and to avoid the problem of excessive resistance and loss of balance. The 24v 105Ah lithium battery provides the floor machine with significant weight savings and greater capacity for long-lasting durability and easier operation. At the same time, lithium batteries are also environmentally friendly, with less impact on the environment during production and use, in line with the green development concept of modern society.
Enquiry Now
We are a professional manufacturer of lithium batteries, specializing in the development and production of lithium iron phosphate batteries. With 15+ years of core patents, we have a deep understanding of the energy needs of floor machines and can provide you with smarter and longer-lasting floor machine batteries.
Adopting an advanced intelligent system to control the production process, we have specialized staff to monitor the manufacturing process and strict quality control, strictly control the selection of raw materials for the finished product factory inspection, high production efficiency, but also to ensure the safety of the battery, to ensure that each lithium battery meets the standards, to improve the user’s experience.
COPOW LiFePO 4 battery has super high-cost performance, deep cycle, maintenance-free, no memory effect, compared with lead-acid batteries, the service life is increased by more than 3 times.
The top-grade batteries such as EVE and REPT are selected, and the advanced capacitor separation technology selects A-grade batteries to ensure excellent thermal and chemical stability, and the built-in multiple protection functions effectively avoid over-temperature, short-circuit, over-voltage and other failures.
Perfect one-stop service system. From providing you with free solutions to the use of the process, if you encounter any problems, 24-hour response and provide solutions to ensure that you have no worries.
In today’s cleaning equipment, the 24V 105Ah COPOW lithium battery stands out for its outstanding performance and is ideal for all types of floor machinery.
With its high power, high current, and high capacity, this lithium battery is perfectly suited to the power needs of floor machinery. Compared with traditional lead batteries, it is superior in capacity, quality, density, life, and environmental protection. Its lightweight greatly reduces the overall weight of the flooring machine, making the flooring machine operate more flexibly and freely, and transportation is also more convenient.
In terms of craftsmanship, COPOW batteries use nickel sheet and laser welding technology with stainless steel shells, effectively preventing damage caused by vibration and falling. At the same time, an internal fire extinguishing device can be installed, and the intelligent protection plate provides comprehensive protection for the battery. The COPOW floor machine battery is waterproof to IP67 and utilizes an insulated epoxy resin plate for excellent heat dissipation.
The COPOW floor machine battery has a high energy density and a high discharge rate, ensuring that the floor machine remains powerful over a long time. Whether it’s for heavy cleaning tasks or working in a variety of complex environments, it demonstrates excellent reliability and stability and is undoubtedly the ideal power source for modern cleaning equipment.
| Model | 24V105Ah |
| Nominal Voitage | 24V(25.6V) |
| Nominal capacity | 105Ah |
| Stored Energy | 2.688kwh |
| Dimension (LxWxH) | 13.79*12.10*10.98 inch 338*307*279 mm |
| Weight lbs. (kg) | 49.5lbs (22.5kg) |
| Continuous Discharge | 100A |
| Peak Continuous Discharge | 200A |
| Operating Temperature | -4°F~131°F(-20°C~ 55°C) |
| Storage( 1 month ) | -4°F~113F(-20°C~45°C) |
| Storage( 1 year ) | 32°F~95°F(0°C~35°C) |
The charging time for lithium batteries is affected by multiple factors such as charging current, initial charging state, charger efficiency, BMS and ambient temperature. The actual charging time range is about 2 – 20 hours. If charging with a charging current of 10A, it will take about 10.5 hours;
In general, the maximum charging voltage of a single cell of lithium iron phosphate (LiFePO4) batteries is usually around 3.6V-3.65V. For a 24V LiFePO4 battery pack, it usually consists of multiple batteries in series. A common one has 8 batteries in series. The maximum voltage is generally between 28.8V and 29.2V.
This will be affected by the power of the different Floor Machine devices; if the power reserve is 300W, then a 25.6V 105Ah Li-ion battery will last for about 9 hours in a normal environment.
Obviously we do not recommend overcharging the 24V 105AH floor machine battery. One of the main functions of BMS is to prevent overcharging and over-discharging of batteries. When the battery is close to full capacity, BMS will automatically adjust the charging current, so that the charging process enters the constant voltage charging stage, and the charging current will gradually decrease. If forced charging continues, BMS will take protective measures, such as cutting off the charging circuit, to protect the safety and performance of the battery.
In terms of voltage, connecting two 12.8V batteries in series can get a voltage of 25.6V, which is theoretically feasible. But in actual operation, there are several points to pay attention to: First, the capacity (Ah), internal resistance and other parameters of the two batteries should be the same as possible. The second is to install a suitable battery protection plate. This protection plate must be able to monitor the status of two batteries at the same time. It can prevent problems such as overcharge, overdischarge, and short circuit. Third, when connecting batteries, we must ensure that the connection is firm and reliable. Generally, high-quality nickel sheets or copper bars are used to connect, and the connection points must be insulated to avoid short circuits. Finally, appropriate charging and discharging parameters should be set based on the total capacity and voltage of the battery pack after being connected in series.
