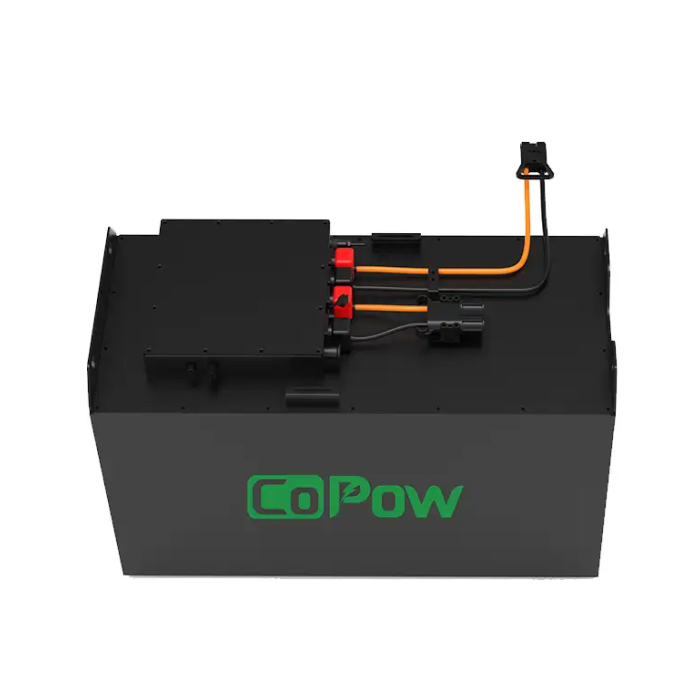

48V 630AH Forklift Lithium Battery

Technical Specifications

Nominal Voltage: 48V (51.2V)
Nominal Capacity: 630 Ah
Stored Energy: 32.2kwh
Dimension (L×W×H) In Inch: customized on demand
Weight lbs. (kg) No Counterweight: 1102.31lbs(500kg)
Cycle Life: ＞6,000 Times
Operating voltage (V):44~58.4
Charging voltage (V):58.4
Recommended charge current (A):≤200
Rated operating current (A):200
Max operating current (A) :630
Available trucks: Linde:RT16/E16-20/R14-16

Series; Toyota: 7FB10/8FBR10-25/8FBE10-20/8FBN15-30
Series; Baol: KBET15-18/KBET 20 series

Add to quote

Categories: 48V Forklift Battery, Feature Product

Benefits

Low Maintenance

Fast Charging

Safest Lithium Technology

High Discharge Currents

High Capacity

Low Temperature and High Efficiency

High Cycle Count

Low self-discharge

Our Advantages

Customized batteries

For the special work condition of industrial car, CoPow customize the high discharge rate lifepo4 battery-high discharge rate, efficient energy storage,long cycle-life, high safety performance, wide adaptability,and can meet 90% capacity range. CoPow self-develop and design forklift lithium solutions for several well-known brand forklift with hundreds of models. after several generations of technology upgrades and years comprehensive performance verification of actual field operation data, CoPow lithium battery get wide recognition and trust by its good function like safety, stable, efficient.long cycle-life.

Remote maintenance

By the big data cloud collaborative management intelligent system, can achieve the function of remote real-time monitoring and manage battery safety Timely maintenance for forklift battery, provide technical guarantee of system upgrade.

High and low temperature control

Intelligent thermal energy management circuit design can fully guarantee normal work even in high and low temperatures.

Intelligent management system

Smart BMS adopt advanced battery manage and control method and unique algorithm, which can achieve real time monitoring about the operative conditions of lithium battery, and also accurate estimate the rest capacity (SOC), battery health condition(SOH)

Big data sharing

Extent service-Big Data sharing and Power supply data analysis report.

Imported accessories

Imported connector and high-performance electric element provide guarantee of long life-span for the forklift lithium battery

Long running time

By the end of July 2021, the data centre shows that the longest operation time of CoPow forklift lithium battery almost reaches more than 15500 hours! It fully proof CoPow high-rate battery is very suitable for the special working condition of industry vehicle, and with super long life-span advantage.

Compatible with multiple brands of forklifts

Independent intelligent management system design, targeting vehicles of different brands and models, achieving standardized productivity of more than 80%

Application

With its extended cycle life, the 48V 630Ah forklift lithium battery is ideal for high-intensity logistics scenarios such as e-commerce warehouses and port terminals. It supports 24/7 continuous operation with three-shift charging cycles, meeting long-term heavy-load handling demands. Additionally, it delivers high power output for manufacturing applications (e.g., steel mills and automotive assembly lines), enabling frequent lifting and long-distance transport. The battery operates stably within a -20°C to 60°C temperature range, adapting to cold chain logistics and specialized environments.

Cooperative Partner

Technical specification

Model

48V 630AH

Nominal vottage (V)

51.2

Nominal capacity(Ah)

630

lectric quantity(kwh)

32.2

Weight (Kg)

500

Operating voltage (V)

44~58.4

Charging voltage (V)

58.4

Recommended charge current (A)

≤200

Rated operating current (A)

200

Max operating current (A)

630

Charging temperature (℃)

0°C to 50°C/32°F to 131°F

Discharging temperature (℃)

-20°C to 55°C/-4°F to 131°F

Storage temperature (℃)

0°C to 40°C/-4°F to 113°F

Chemical system

lithium iron phosphate (LiFePO4)

Warranty

warrantyfor 5 years or 10,000 hours of service

Ingress protection

IP65

Certifications

CE, UN 38.3, UL,IEC, CB, ISO9001

COMMUNICATION METHOD

CAN/RS485

Available trucks

Linde: RT16/E16-20/R14-16 series; Toyota: 7FB10/8FBR10-25/8FBE10-20/8FBN15-30 series; Baol: KBET15-18/KBET 20 series

48V Charger

Output rated voltage

48V

Output current

200A

Rated input voltage

380VAC

Rated input frequency

50-60Hz

Output voltage range

30-60VDC

Input voltage range

260-520VAC

Communication

CAN

Available batteries

315AH / 420AH / 525AH / 630AH

Frequently Asked Question

Yes, 48V 630Ah lithium batteries are perfect for use in forklifts. This configuration has the following features that make it ideal for forklift applications: 1. Using a 48V, the 630Ah capacity provides enough range to support long hours of operation without the need for frequent recharging. 2.High energy density: Li-ion batteries have a higher energy density compared to traditional lead-acid batteries, making them lighter and smaller than lead-acid batteries for the same capacity. This can reduce the dead weight of the forklift and improve the operation efficiency. 3.Long service life; 4.fast charging and high efficiency; 5.safety Modern Li-ion batteries are usually equipped with a battery management system (BMS), which is able to monitor the status of the battery and prevent risks such as overcharging, over-discharging and overheating, ensuring the safety of forklift operation.

The charging time of a 48V 630Ah forklift battery depends on the power of the charger and the remaining charge of the battery; For a 48V 630Ah forklift lithium battery, it usually takes about 4 to 6 hours to fully charge, and may be faster if using a fast charger, usually around 3 hours.

Yes, the 48V 630Ah forklift battery is equipped with an advanced Battery Management System (BMS), which monitors the voltage, temperature and status of the battery in real time and protects the battery from the risks of overcharging, over-discharging and overheating. This Battery Management System (BMS) makes the battery safer and has a longer service life!

Yes, 48V 630Ah forklift batteries comply with international safety certifications such as CE, UL and ISO, which ensure that the batteries meet high standards of quality and safety requirements for use in different markets.

The 48V 630Ah forklift battery can provide a maximum discharge power of up to 20-30kW, which can support high intensity forklift operation requirements and ensure stable operation even under heavy loads.
